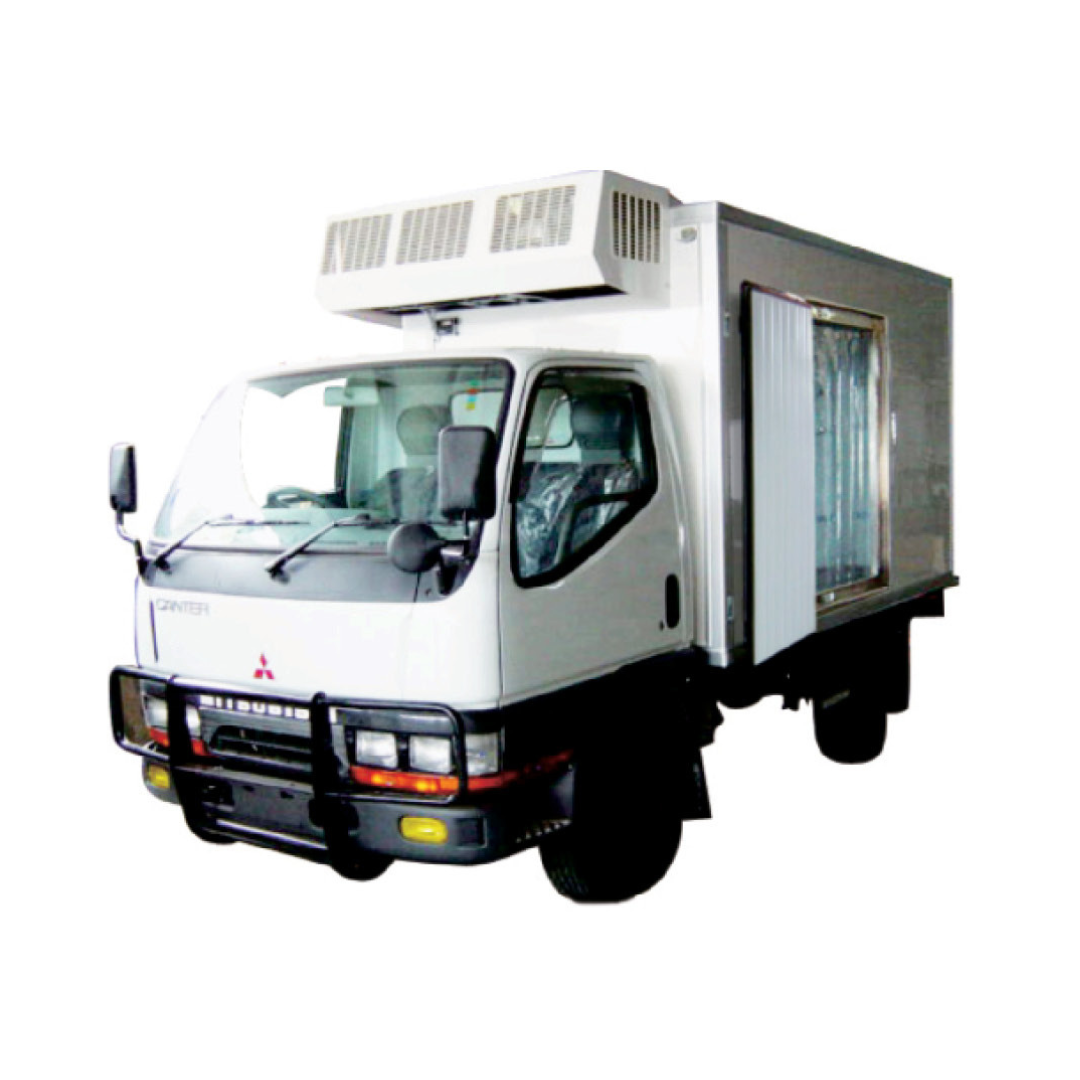

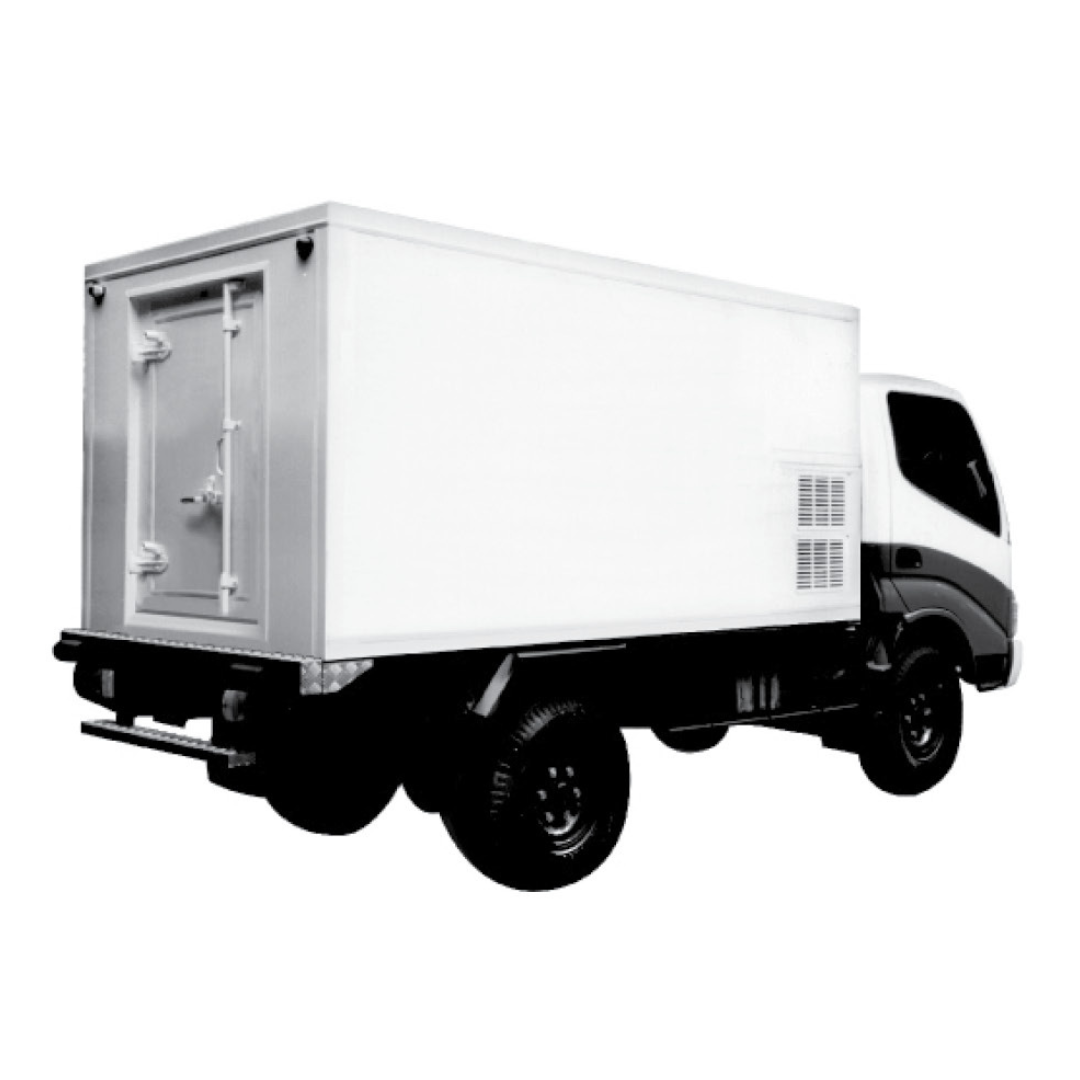

Eutetic Box 4 Ban Besar (Toyota DYNA Mitsubishi COLT FE 304, Isuzu ELF)

Eutetic Box 4 Ban Besar (Toyota DYNA Mitsubishi COLT FE 304, Isuzu ELF)

Quick Overview

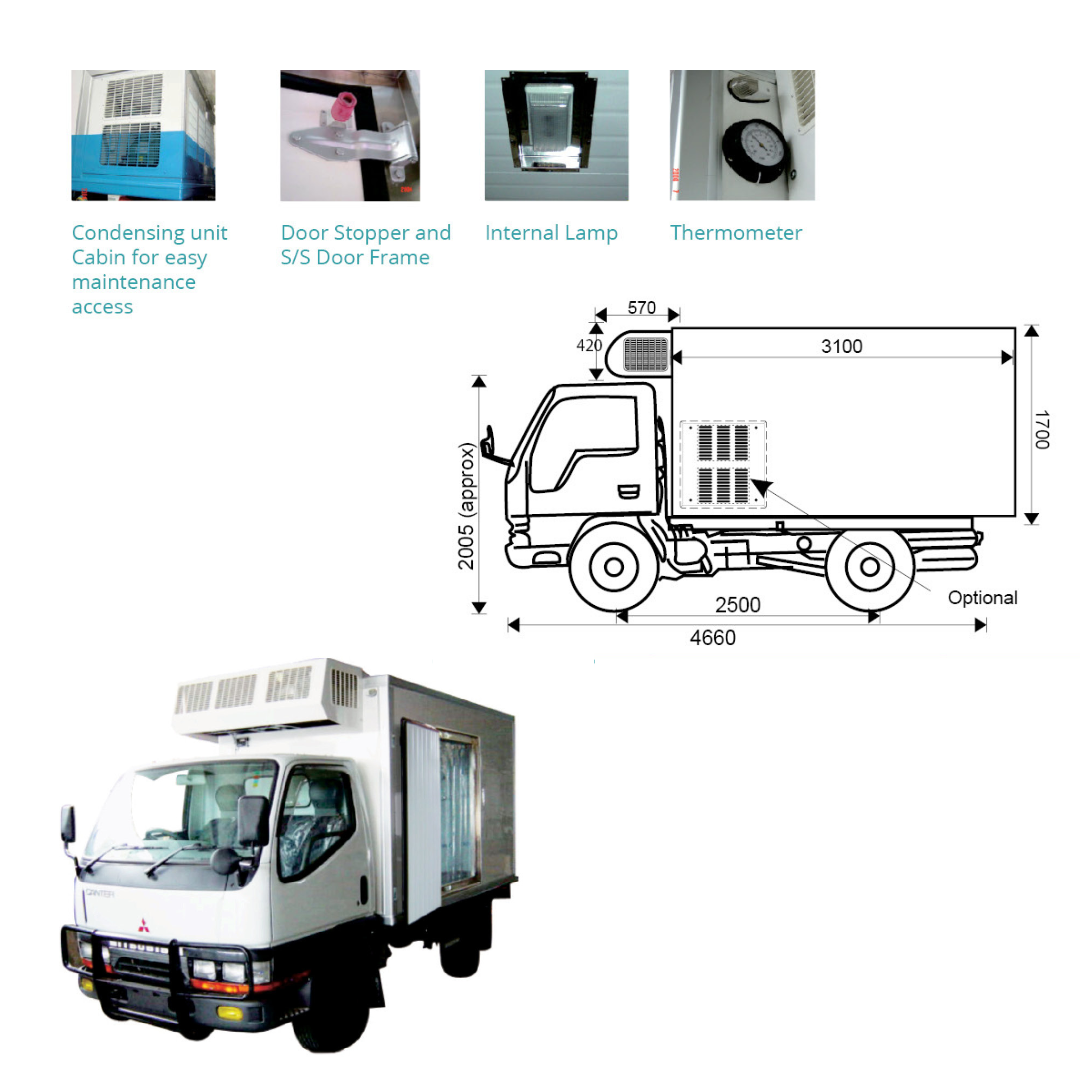

  • Dimension : P310 x L170 x T170 Cm
  • Condensing Unit : Bitzer 2DC2.2, 2.5HP

Scroll ke bawah lihat deskripsi produk

Deskripsi Produk

Inovasi untuk distribusi produk makanan beku dan es krim dengan sistem pengisian ulang (charge) eutectic plate selama 10 s/d 12 jam. Setelah mencapai suhu -35°C/-40°C, eutectic box siap digunakan untuk aktivitas distribusi selama 12 jam

CONDENSING UNIT DIATAS BOX
PINTU SAMPING (OPTIONAL)

BENEFIT
Do not use car engine power to rotate the compressor, so that the car engine is more durable & powerful. There is no defrost  cycle system so that the stability of the temperature / product quality is more guaranteed during delivery

Fitur Produk

SPESIFICATION

  • The cooling system uses air cooled semi hermatic compressor "BITZER" 380V / 3 Ph / 50 Hz / and propylene glycol eutetic plate
  • Cabin insulation material uses 3polyurethane high pressure with a density of 40 Kg / M coated with fiberglass for the outer skin and white colorbond for the inner skin (food grade), 10 cm thick.
  • The swing door is equipped with a heater and a gasket to prevent condensation

 ACCESSORIES

  • PVC strip curtain
  • Rubber door stopper
  • Analog temperature reading
  • Floor : alumunium corrugated structure
  • 2 nos weather proof 12 V bulbs lamp for internal lighting
  • 4 nos weather proof 12 V bulbs lamp for external box signing
